Rainbow Engg Co

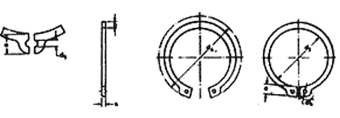

External Circlips (Heavy Series) - DIN 471 - IS 3075
Alternate Shape
of Lug
For d1=40 and above
Expanded for Assembly
 Unexpanded
Shaft
Dia
d1
External Circlip
S
h11
a
Max
b
Approx
d3
D4
Expanded
d5
Min
15 mm
1.5
4.8
2.4
13.8
25.5
2
TO
100 mm
4
10.5
804
105.5
78.0
3.5
