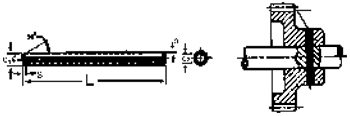

Spring Dowel Sleeves (Light) : DIN 7346 IS 5988

Up to 4.5 Nominal Dia

Spring Dowel Sleeve
(Up to 4.5 Nominal Dia)

Up to 5 mm Nominal Dia

Spring Dowel Sleev
(Above 5 Niminal Dia)

Nominal Diameter M M	5	a	Before Fitting		For Bolt Size [ IS : 4218 (Part VI) - 19671 ] H6	Preferred Length Range (From upto and Including) L
			d1	d2
2	0.2	0.35	2.3	1.9	--	4-30
TO
50	5	4	50.5	40.5	M39	20-200
